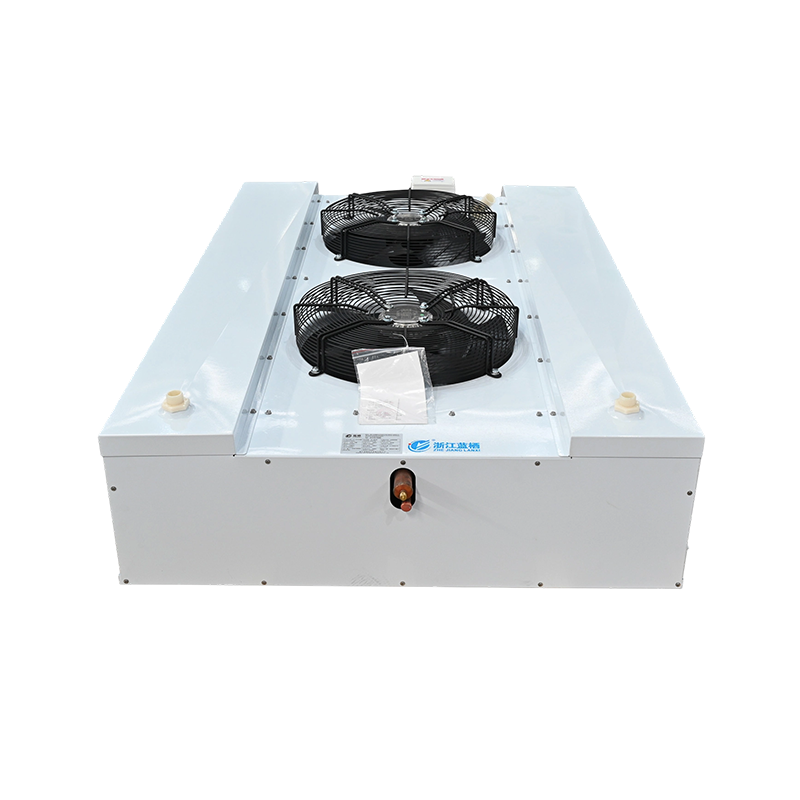

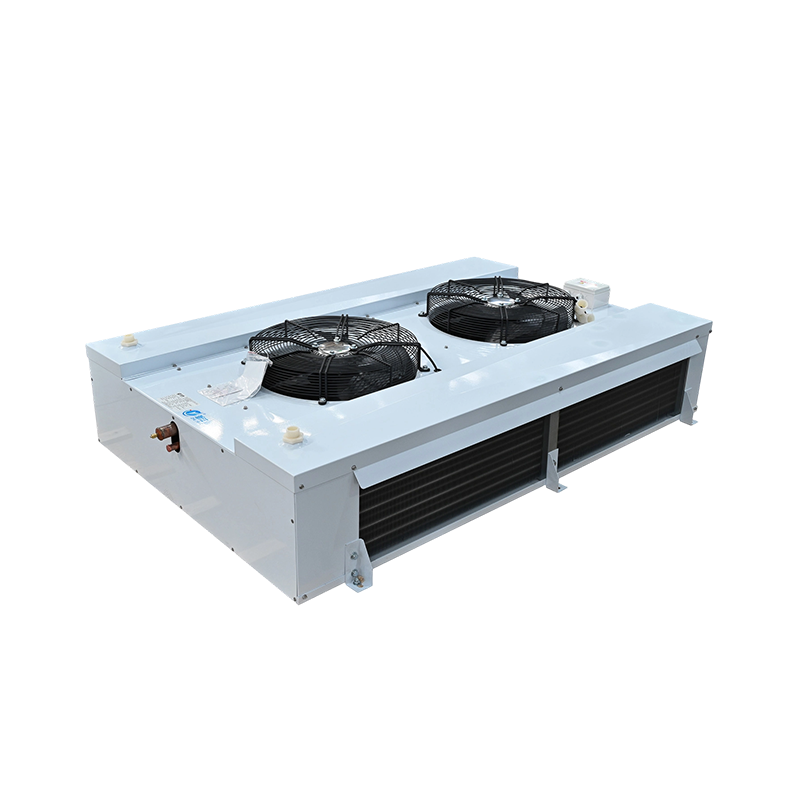

Doubl Side Wind Blower

The Doubl Side Wind Blower is a high-efficiency temperature control device designed to meet the needs of large-area, uniform cooling. It is widely used in large cold storage and frozen warehouses, as well as industries with stringent temperature control requirements, such as food processing, chemical storage, and pharmaceutical cold chain logistics. Its unique dual-side air outlet design allows air to be blown out from both sides of the device simultaneously, quickly and evenly covering the entire space. This ensures a more uniform temperature distribution in cold storage or refrigerated areas, avoiding the uneven temperature problems that can occur with traditional single-side air outlet designs.
The Doubl Side Wind Blower is ideal for cooling large spaces, especially suitable for medium and large-sized cold storage warehouses, meat processing plants, seafood preservation, fruit and vegetable storage, and pharmaceutical cold storage and chemical storage. These industries have extremely high requirements for cold chain logistics and temperature control precision. The Doubl Side Wind Blower provides a stable temperature environment, ensuring that all types of goods maintain optimal quality during storage.

  • Doubl Side Wind Blower
  • Doubl Side Wind Blower
  • Doubl Side Wind Blower

Equipment Parameters Introduction

Detail Display

Contact Us

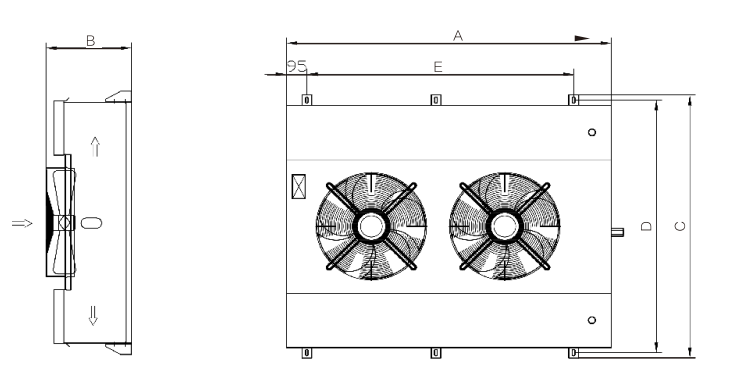

Equipment Parameters Introduction

Model Refrige-
rating
Capacity
Cooling
area
Diameter
of Feed
inlet
Diameter
of lnlet
Pipe
Wind rate Quantiny Fan
blade
Voltage Power Air throw Length Width Higth Installing
Dimension
A B C D E
6mm
Pitch of fins
△T=10℃
T=-25℃
mm   mm m³/h N mm V W m mm mm mm mm mm
CDD-4.4/22 4.4  22  12    16  1×3950 400  380  1×180 870  420  1040  990  600
CDD-5.6/30 5.6  30  16    25  2×3950 400  380  2×180 1310  420  1040  990  1040
CDD-8.0/40 8.0  40  16    25  2×3950 400  380  2×180 1310  420  1260  1210  1040
CDD-12/60 11.8  60  19    28  2×7300 500  380  2×500 1510  420  1260  1210  1240
CDD-16/80 16.0  80  19    28  2×7300 500  380  2×500 1810  420  1260  1210  1540
CDD-19/100 19.3  100  19    35  3×7300 500  380  3×500 2260  420  1260  1210  1990
CDD-24/120 24.2  120  19    35  3×7300 500  380  3×500 2560  420  1260  1210  2290
CDD-28/140 28.1  140  25    42  4×7300 500  380  4×500 3010  420  1260  1210  2740
CDD-32/160 32.3  160  25    42  4×7300 500  380  4×500 3310  420  1260  1210  3040
CDD-39/200 39.4  200  25    50  4×7300 500  380  4×500 2790  420  1260  1210  2520
