Floor Mounted Outlet air Cooler

The Floor Mounted Outlet Air Cooler is a refrigeration unit designed for efficient and uniform cooling, making it particularly suitable for large cold storage facilities, food processing plants, pharmaceutical storage, and various environments requiring precise temperature control. Its top-discharge design effectively solves the problems of uneven airflow and temperature dead zones that can occur with traditional air coolers. Compared to other types of air coolers, the floor-mounted top-discharge air cooler has higher air circulation efficiency, maintaining a stable low-temperature environment over a wider area and ensuring temperature consistency throughout the cold storage.

It is especially suitable for large cold storage facilities, meat processing plants, seafood preservation, fruit and vegetable storage, and pharmaceutical cold storage. The floor-mounted top-discharge air cooler provides these industries with an efficient, stable, and energy-saving cooling solution through its superior temperature control capabilities.

  • Floor Mounted Outlet air Cooler

Equipment Parameters Introduction

Detail Display

Contact Us

Equipment Parameters Introduction

Model Refrige-
rating
Capacity
Cooling
area
Diameter
ofFeed
inlet
Diameter
of Inlet
Pipe
Wind rate Quantiny Fan
blade

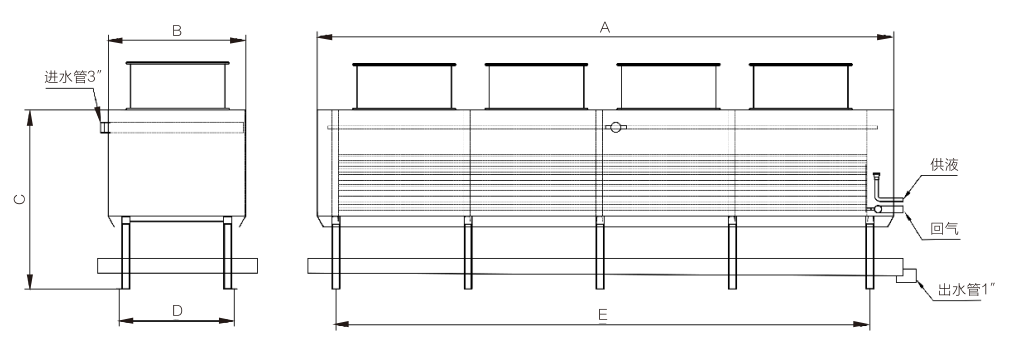

Voltage Power Ai throw Length Width Higth Installing
Dimension
A B C D  E
6mm
Pitch of fins

△T=10℃
T=-25℃
  mm mm m³/h N mm V W m mm mm mm mm mm
LDD-310 62  310    25  50  3×12000 600  380  3×1500 20  3250  840  1250  670  2920
LDD-360 72  360    25  50  4×12000 600  380  4×1500 20  3550  840  1250  670  3240
LDD-400 80  400  2×25 2×50 4×12000 600  380  4×1500 20  3950  840  1250  670  3640
LDD-500 100  500  2×25 2×50 4×13000 650  380  4×2200 20  4010  1040  1250  870  3640
LDD-600 120  600  2×25 2×50 4×13000 650  380  4×2200 20  4410  1040  1250  870  4040
LDD-700 140  700  3×25 3×50 4×13000 650  380  4×2200 20  4410  1040  1350  870  4040
LDD-800 160  800  3×25 3×50 4×15000 700  380  4×3000 20  4410  1040  1450  870  4040
LDD-1000 200  1000  4×25 4×50 5×15000 700  380  5×3000 20  4980  1040  1450  870  4665
LDD-1200 240  1200  4×25 4×50 6×15000 700  380  6×3000 20  5640  1140  1450  870  5320
