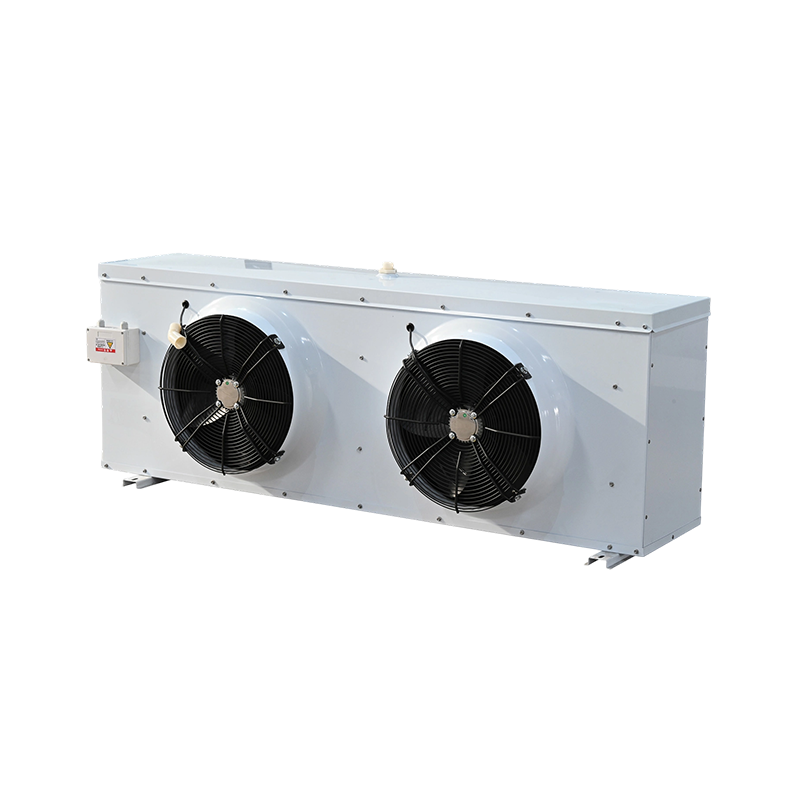

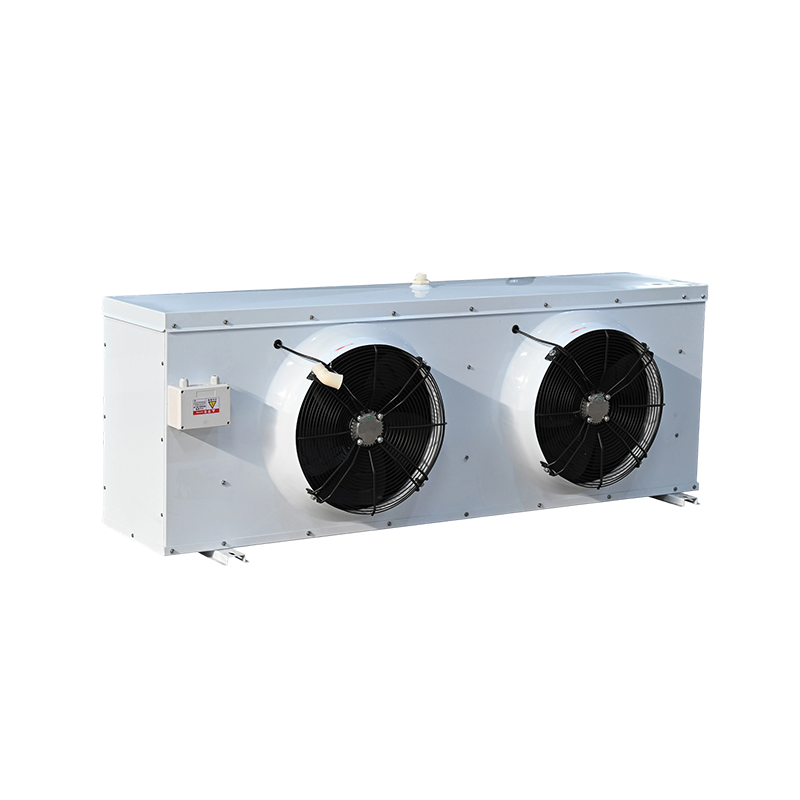

Water Defrosting Cold Blower

The Water Defrosting Cold Blower is a high-efficiency cooling device designed for refrigeration, freezing, and preservation applications in low-temperature environments. It is widely used in food processing, pharmaceutical cold chain, and chemical storage. Compared to traditional evaporative air coolers, the water-defrosting cold blower utilizes innovative water defrosting technology. By combining water and air flow, it automatically removes frost from the condenser coils, ensuring continuous, stable, and efficient operation under low-temperature conditions. Traditional evaporative air coolers suffer from reduced heat exchange efficiency due to frost buildup, affecting cooling performance. The water-defrosting cold blower effectively avoids this problem, significantly reducing maintenance frequency, lowering manual defrosting costs, and extending equipment lifespan.
The device employs a highly efficient staggered coil design combined with mechanical tube expansion technology, ensuring a tight bond between the copper tubes and aluminum fins, greatly improving heat exchange efficiency. This design ensures even air distribution within the cold storage or freezer compartment, preventing excessive temperature differences or cold zones, thus providing a stable low-temperature environment for the goods. The air cooler's casing is made of high-quality steel plate and has been powder-coated, giving it excellent corrosion resistance and oxidation resistance. It can operate stably in long-term low-temperature and humid environments, ensuring the equipment's durability and reliability.

  • Water Defrosting Cold Blower
  • Water Defrosting Cold Blower
  • Water Defrosting Cold Blower

Equipment Parameters Introduction

Detail Display

Contact Us

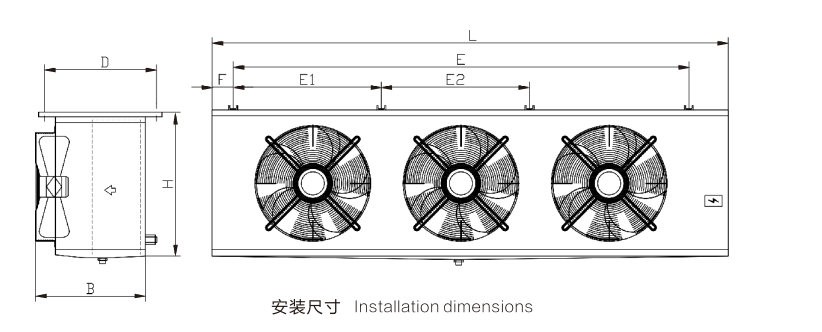

Equipment Parameters Introduction

Model Length
L
Width Higth Position Dimension of Suspended-ceiling Mounting Hole Intake Outfall
B H D E E1 E2 E3 E4 F
SDL-17/80 1820  680  780  630  1550  95  1.5" 2”
SDD-11/160
SDJ-6.2/40
SDL-23/105 1820  680  780  630  1550  95  1.5” 2”
SDD-14/80
SDJ-8.5/55
SDL-28/125 2300  680  780  630  2030  676  677  677  95  2×1.5” 3”
SDD-18/100
SDJ-11/70
SDL-35/160 2720  680  780  630  2450  816  817  817  95  2×1.5" 3”
SDD-21/120
SDJ-13/85
SDL-40/185 3120  680  780  630  2850  712.5  712.5  712.5  712.5  95  2×1.5” 3”
SDD-25/140
SDJ-16/100
SDL-46/210 3520  680  780  630  3250  812.5  812.5  812.5  812.5  95  2×1.5" 3”
SDD-28/160
SDJ-18/115
SDL-52/260 2220  820  1000  770  1950  950  1000  95  1.5” 3”
SDD-35/200
SDJ-22/140
SDL-66/330 2720  820  1000  770  2450  800  800  850  95  2×1.5" 4”
SDD-44/250
   SDJ-26/170
   SDL-82/410 3120  820  1000  770  2850  933  933  984  95  2×1.5" 4”
SDD-62/310
SDJ-33/210
SDL-94/470 3320  820  1100  770  3050  1000  1000  1050  95  2×1.5" 4”
SDD-72/360
SDJ-39/250
SDL-116/580 3920  820  1100  770  3650  900  900  900  950  95  2×1.5" 4”
SDD-80/440
SDJ-47/300
