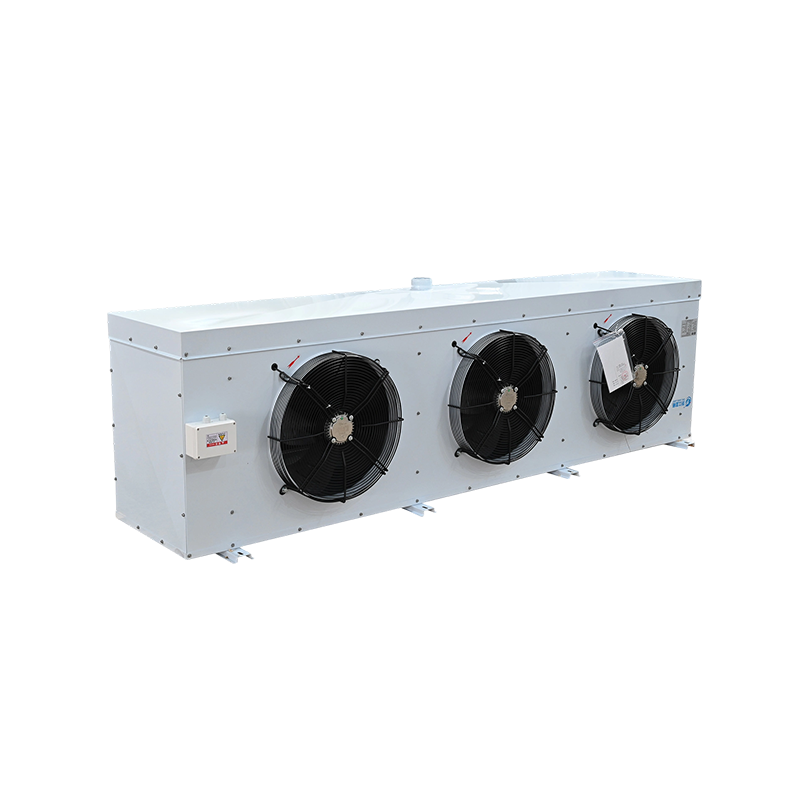

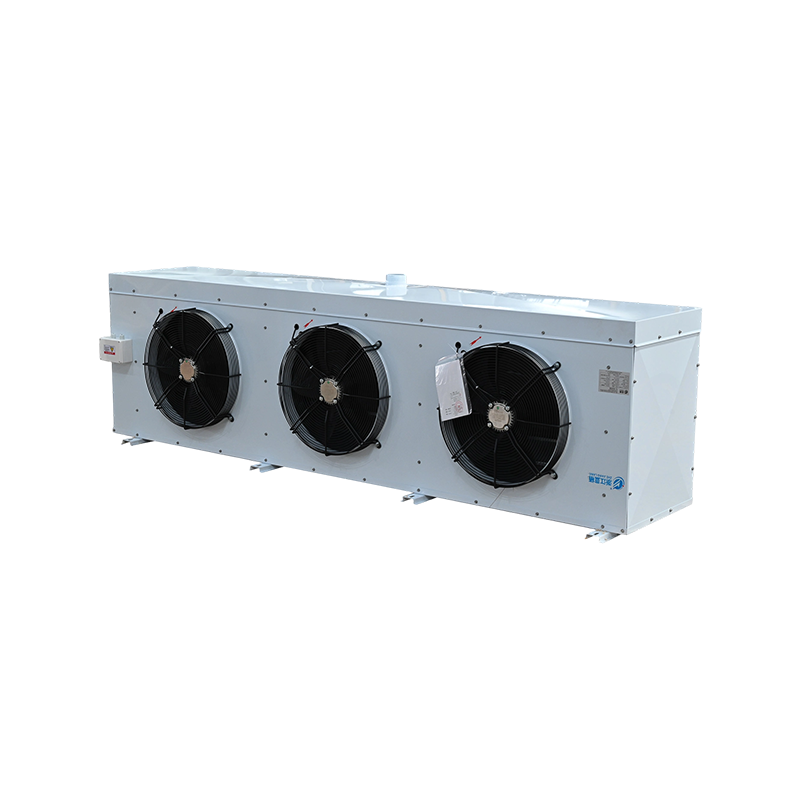

DJ Series Cold Blower

The DJ Series Cold Blower is designed for cold storage environments around -25°C and is widely used in food storage, frozen processing, cold chain logistics, and other low-temperature environments requiring temperature control. With its efficient cooling and ventilation capabilities, the DJ series cold blower provides continuous and uniform temperature control for refrigerated, cold-stored, and frozen storage, ensuring optimal freshness and quality of goods during storage. It is particularly suitable for storing temperature-sensitive products such as fruits, vegetables, seafood, meat, and ice cream.
The cold blower's casing is made of high-quality steel plate with a powder-coated finish, providing excellent corrosion resistance and oxidation resistance. This not only withstands the challenges of long-term low-temperature environments but also maintains an attractive appearance and is easy to clean. Its superior corrosion resistance ensures stable operation even in extreme low-temperature and humid environments, reducing maintenance costs and failure rates.
The high-quality stainless steel electric heating elements inside the cold blower are evenly distributed within the coils, enabling efficient defrosting. The advanced design of tight contact between the electric heating aluminum sleeve and the fin hole effectively improves defrosting efficiency, prevents frost from affecting the normal operation of the air cooler, and ensures its continuous and stable operation in low-temperature environments.

  • DJ Series Cold Blower
  • DJ Series Cold Blower
  • DJ Series Cold Blower

Equipment Parameters Introduction

Detail Display

Contact Us

Equipment Parameters Introduction

Model Refrige-rating Capacity Cooling
area
Diameter of
Feed inlet
Diameter of
Inlet Pipe
Wind rate Quantiny Fan blade Voltage Power Air throw Defrost electric heater
9mm
Pitch of fins
△T=10℃
T=-25℃
  m² mm mm m³/h N mm   V W   m Coil unit / Drain pan
DJ-1.9/12 1.9    12  12  16  2×2450 350  380  2×150   8  1.0  1.0
DJ-2.3/15 2.3    15  12  16  2×2450 350  380  2×150   8  2.0  1.0
DJ-3.1/20 3.1    20  16  25  2×3950 400  380  2×180   10  2.4  1.2
DJ-4.7/30 4.7    30  16  25  2×3950 400  380  2×180   10  2.4  1.2
DJ-6.2/40 6.2    40  19  32  2×7300 500  380  2×500   15  4.2  1.4
DJ-8.5/55 8.5    55  19  32  2×7300 500(High-stretch 380  2×500   15  7.0  1.4
DJ-11/70 10.9    70  19  38  3×7300 500(High-stretch) 380  3×500   15  8.0  1.6
DJ-13/85 13.2    85  19  38  3×7300 500(High-stretch 380  3×500   15  8.5  1.7
DJ-16/100 15.5    100  25  42  4×7300 500(High-stretch) 380  4×500   15  10.0  2.0
DJ-18/115 17.8    115  25  42  4×7300 500(High-stretch) 380  4×500   15  11.0  2.2
DJ-22/140 21.7    140  25  50  2×12000 600(Hair dryer) 380  2×1500   20  12.6  3.6
DJ-26/170 26.4    170  25  50  3×12000 600(Hair dryer) 380  3×1500   20  14.7  4.2
DJ-33/210 32.6    210  25  50  3×12000 600(Hair dryer) 380  3×1500   20  17.6  5.0
DJ-39/250 38.8    250  25  50  3×12000 600(Hair dryer) 380  3×1500   20  19.6  5.6
DJ-47/300 46.5    300  28  50  4×12000 600(Hair dryer) 380  4×1500   20  22.0  6.0
