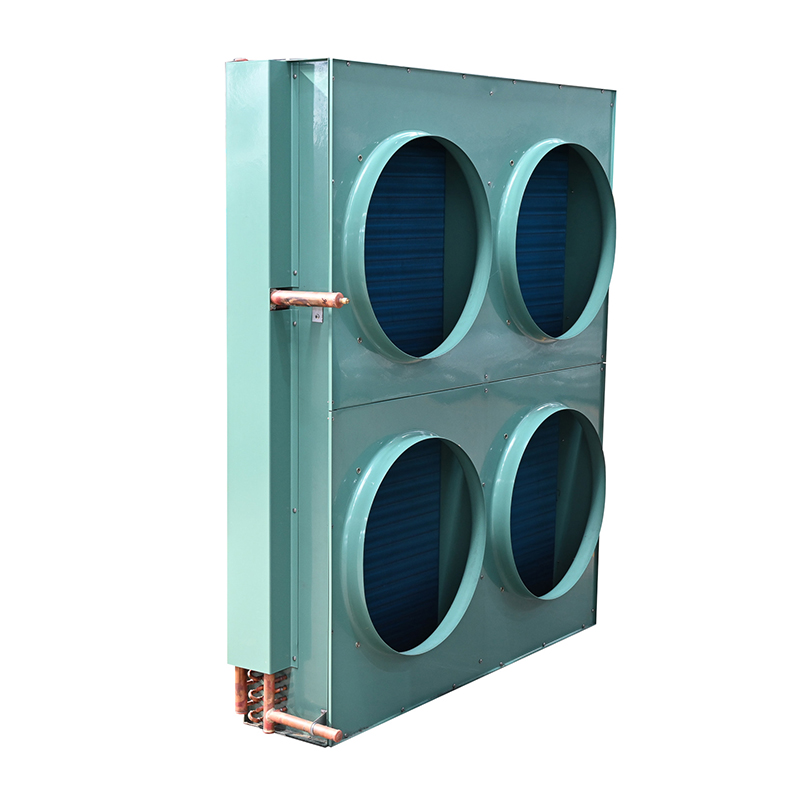

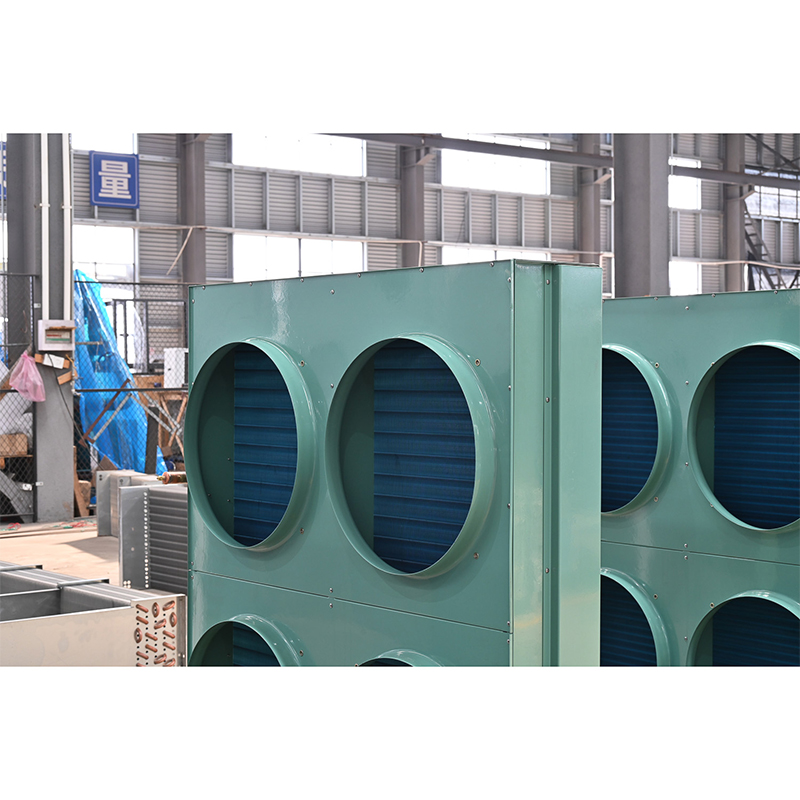

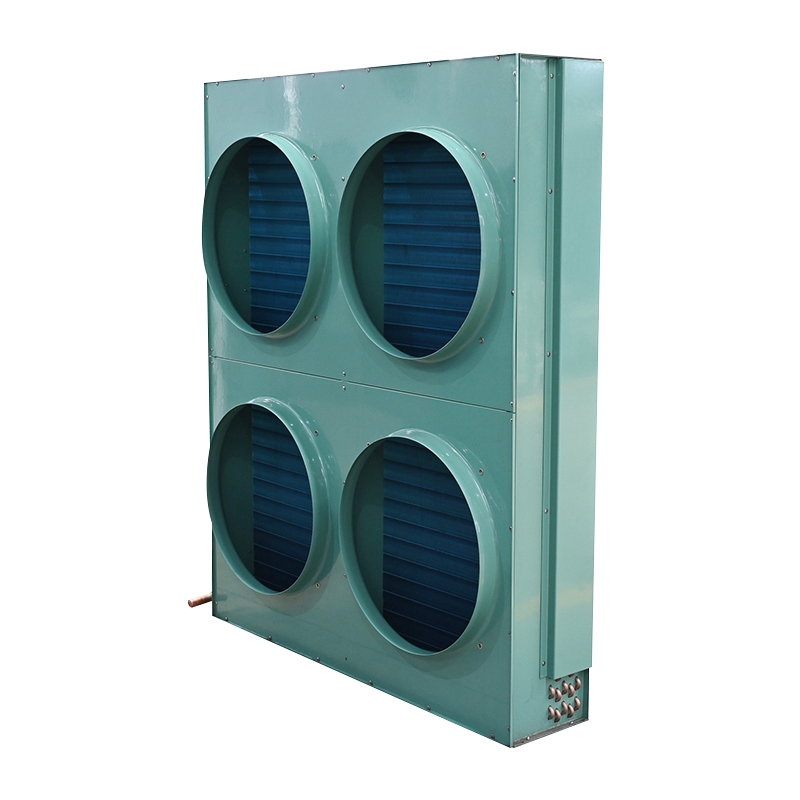

FNH Model Series Air-Cooled Condenser

The FNH model series air-cooled condenser is a high-performance, highly reliable air cooling device widely used in refrigeration, air conditioning, and industrial cooling systems. This series includes various models with heat exchange capacities ranging from 7.6 kW to 57.4 kW, meeting the needs of cooling systems of different sizes. The condenser employs a high-efficiency heat exchange design, equipped with appropriately sized copper tubes and aluminum fins to achieve rapid and uniform heat transfer, ensuring stable cooling performance during long-term operation.
The FNH series air-cooled condenser is equipped with multiple high-performance fans, with blade diameters ranging from 350 mm to 500 mm. The optimized airflow design effectively improves air convection efficiency, thereby optimizing condensation performance. The number of fans can be configured with 2, 4, or more units depending on the model to meet the demands of high-flow, high-efficiency heat dissipation.
The FNH condenser boasts a robust and durable overall structure, featuring a steel plate shell with anti-corrosion treatment, making it suitable for long-term operation in various environments. The air inlet and liquid outlet pipes are rationally designed with standardized interface dimensions, facilitating system integration and installation. The equipment's length, width, and height are optimized for different models, and installation dimension references are provided to ensure a convenient and smooth installation process.

PREV：FNVB Model Series Air-Cooled Condenser NEXT：Water Cooled Condenser

Equipment Parameters Introduction

Detail Display

Equipment Parameters Introduction

Model	Heat Dissipation	Area Dissipation	Fan blade	Quantiny	Wind rate	Power	Voltage	Air Inlet Pipe	liquid Outlet Pipe	Length	Width	Higth	Instlling Dimension
	Heat Dissipation	Area Dissipation	Fan blade	Quantiny	Wind rate	Power	Voltage	Air Inlet Pipe	liquid Outlet Pipe	A	B	C	D	E
	Kw	m²	mm	N	m³/h	W	V	mm	mm	mm	mm	mm	mm	mm
FNH-8/28	7.6	28	350	2	2×2450	2×150	380	19	16	870	180	420	830	130
FNH-9/33	8.7	33	350	2	2×2450	2×150	380	19	16	1030	180	520	880	130
FNH-12/41	11.9	41	400	2	2×3950	2×180	380	19	16	1050	200	620	960	150
FNH-15/49	14.7	49	400	2	2×3950	2×180	380	19	16	1050	200	620	980	200
FNH-17/60	17.3	60	400	2	2×3950	2×180	380	22	16	1200	250	620	1130	200
FNH-20/70	20.3	70	450	2	2×5400	2×280	380	25	16	1200	250	740	1130	200
FNH-23/80	23.4	80	400	4	4×3950	4×180	380	25	19	1055	250	1040	1030	200
FNH-29/100	28.7	100	400	4	4×3950	4×180	380	25	19	1055	250	1240	1030	200
FNH-35/120	34.7	120	400	4	4×3950	4×180	380	28	19	1155	250	1240	1130	200
FNH-41/140	40.4	140	450	4	4×5400	4×280	380	28	19	1225	250	1340	1200	200
FNH-43/150	43.2	150	450	4	4×5400	4×280	380	32	25	1225	250	1240	1200	200
FNH-46/160	46.1	160	450	4	4×5400	4×280	380	32	25	1225	250	1340	1200	200
FNH-52/180	51.8	180	450	4	4×5400	4×280	380	32	25	1225	250	1440	1200	200
FNH-57/200	57.4	200	500	4	4×7300	4×500	380	32	25	1300	250	1520	1230	200

Detail Display
