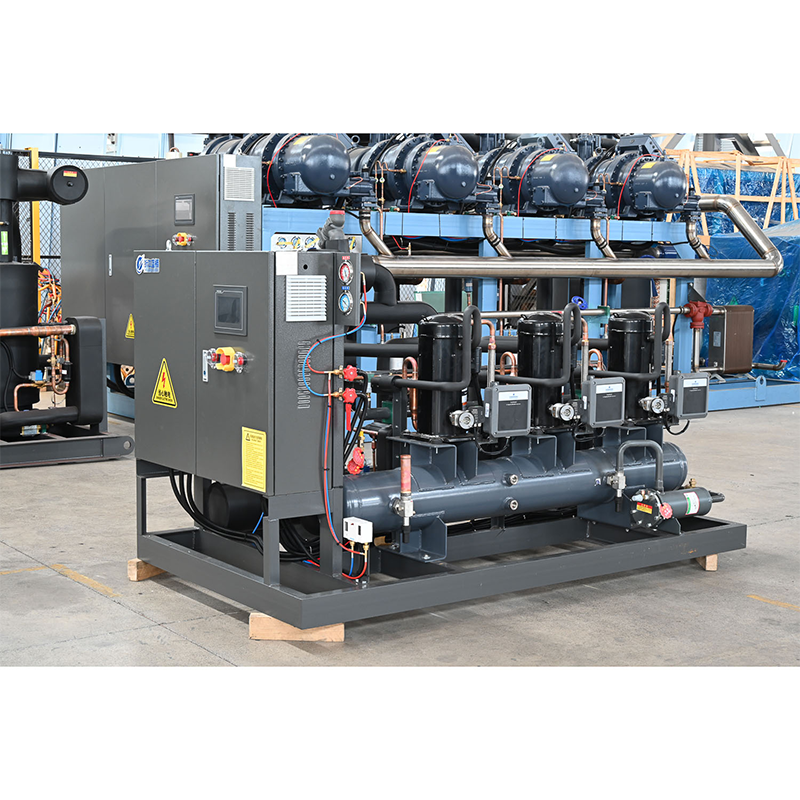

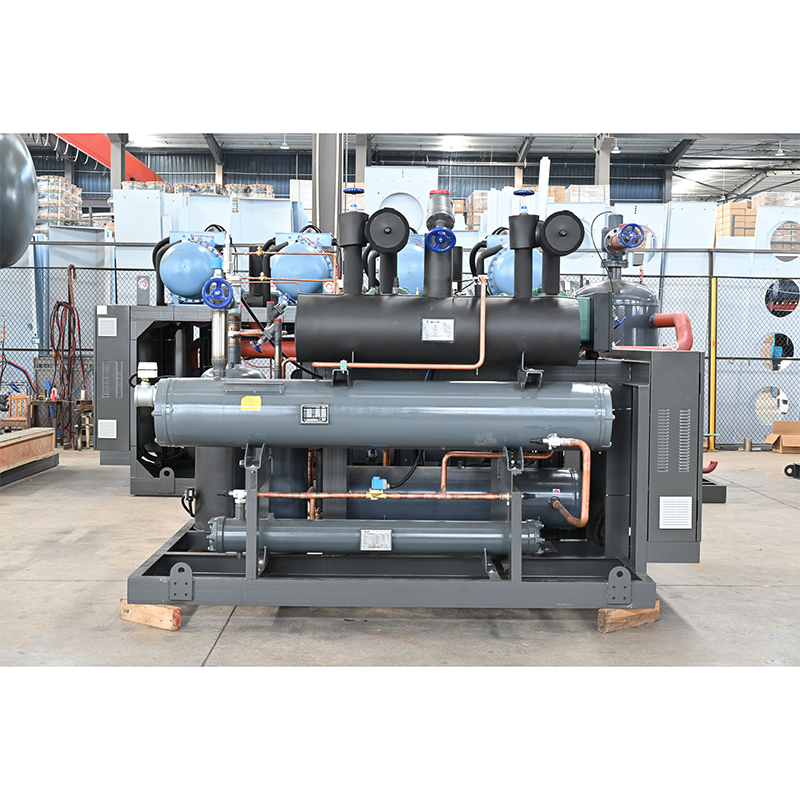

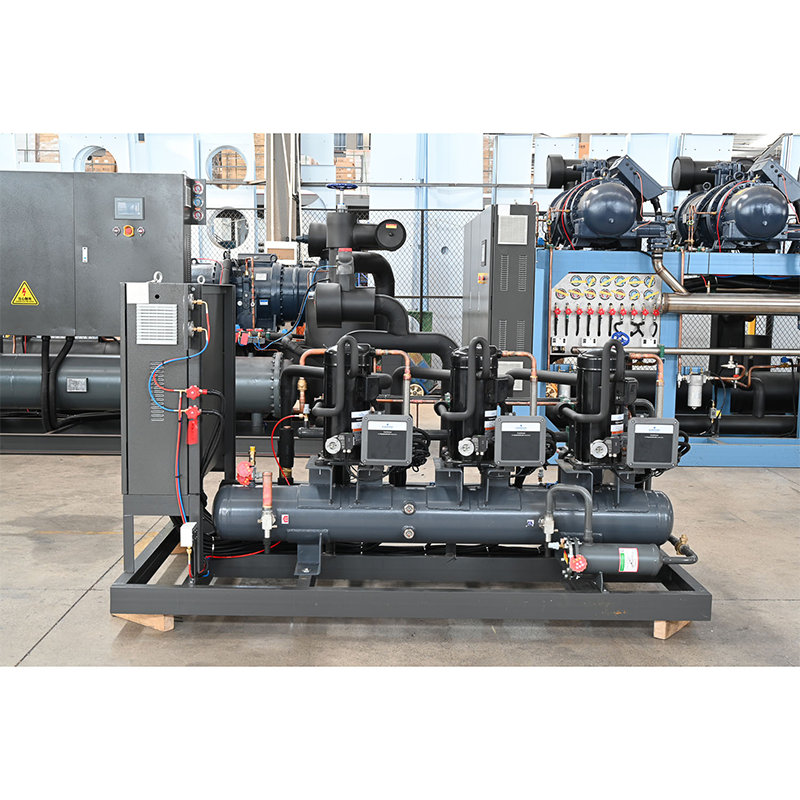

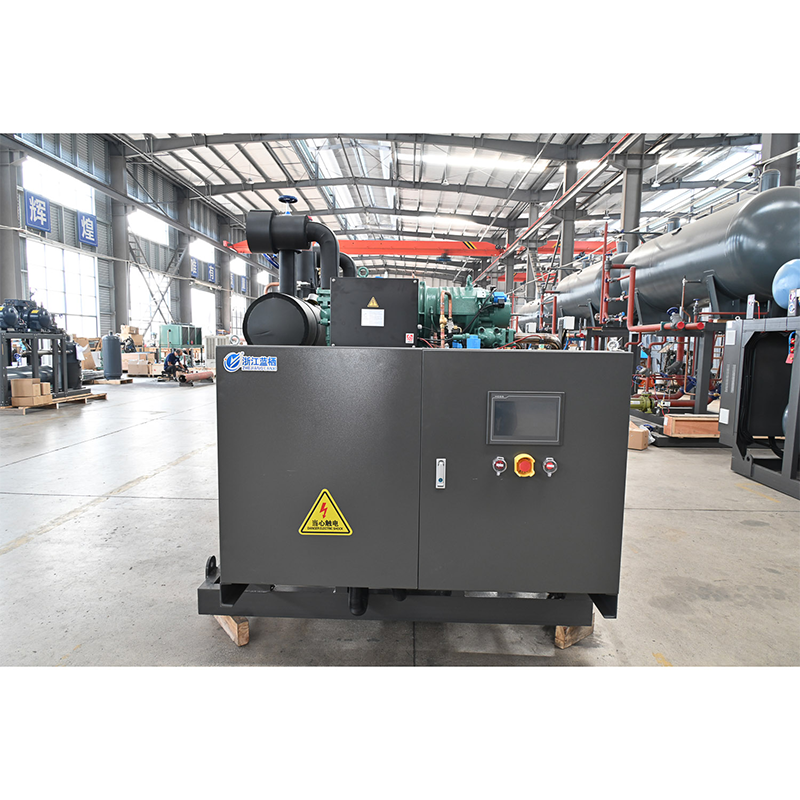

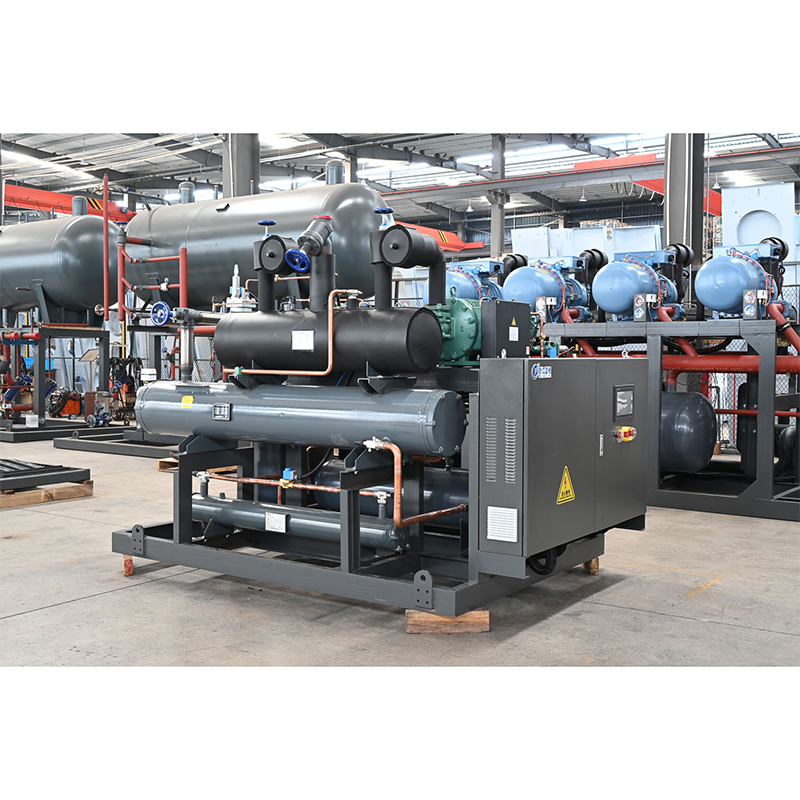

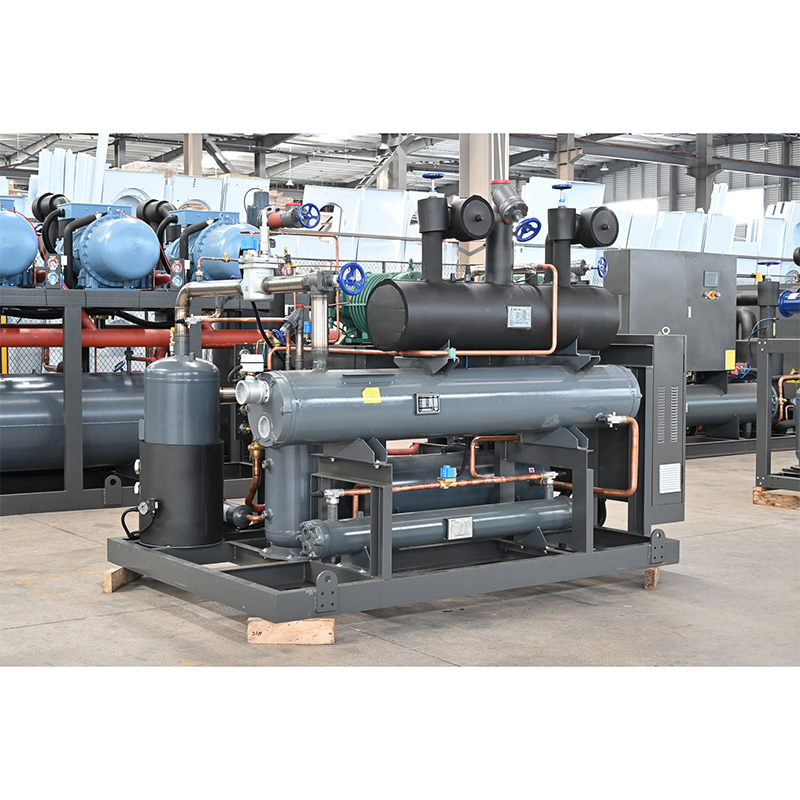

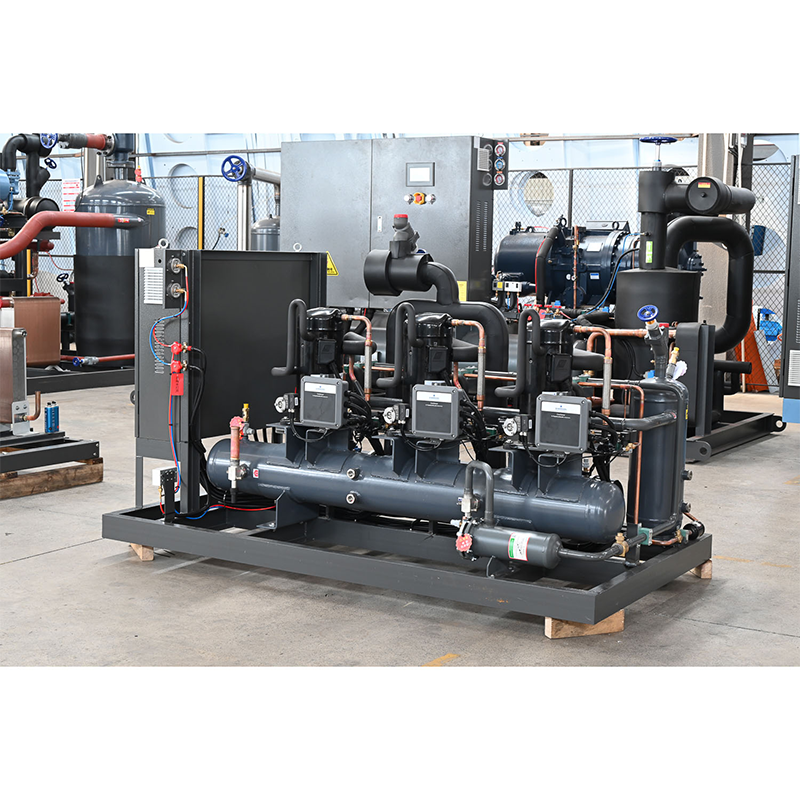

RFC High Temperature Screw Unit
The RFC high temperature screw unit is a high-efficiency refrigeration system specifically designed for high temperature environments. It is widely used in industries such as petrochemicals, metallurgy, power generation, and mechanical processing for high temperature cooling and industrial refrigeration needs. The unit employs advanced screw compressor technology, offering extremely high stability, low noise, and excellent energy efficiency. The main feature of the RFC high temperature screw unit is its ability to maintain excellent cooling performance in high temperature environments, providing stable refrigeration support for various industrial processes.
The RFC high temperature screw unit is equipped with a high-performance compressor that utilizes industry-leading technology to improve refrigeration efficiency. It reduces energy consumption while extending the service life of the equipment. The unit is also equipped with an intelligent control system that can monitor operational parameters in real time and automatically adjust the operating status based on load variations, optimizing cooling performance and energy efficiency. With advanced control technology, users can monitor the equipment’s operational status at any time, ensuring stability and high efficiency under any working conditions.
Equipment Parameters Introduction
Detail Display
Contact Us
Equipment Parameters Introduction
| Unit Model | Cam.Model (RFC) |
Com, Cuartity |
Condensing temp.,(℃） |
Evaporation Temp. (℃) | Reservoir (L) |
Supply pipe (mm） |
Suction pipe (mm） |
Gas Outiet pipe (mm） |
liquid inletpipe (mm） |
Dimension(mm) (LxW×H) |
|||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Cooling Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG120 -40 (40HP) |
1 | 35 | 60.0 | 23.4 | 73.1 | 23.7 | 88.2 | 24.2 | 105.2 | 24.5 | 124.2 | 24.9 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 56.0 | 26.4 | 68.4 | 26.5 | 82.9 | 26.6 | 99.5 | 27.0 | 118.2 | 37.6 | |||||||||
| 45 | 51.5 | 27.3 | 63.3 | 27.9 | 77.4 | 28.5 | 93.7 | 29.2 | 112.1 | 29.9 | |||||||||
| LXPL-BRFCF2 -80H |
2 | 35 | 120.0 | 46.8 | 146.2 | 47.4 | 176.4 | 48.4 | 210.4 | 49.0 | 248.4 | 498 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 112.0 | 528 | 136.8 | 53.0 | 165.8 | 53.2 | 199.0 | 54.0 | 236.4 | 55.2 | |||||||||
| 45 | 103.0 | 54.6 | 126.6 | 55.8 | 352.8 | 57.8 | 187.4 | 58.4 | 224.2 | 59.8 | |||||||||
| LXPL-BRFCF3 -120H |
3 | 35 | 180.0 | 70.2 | 219.3 | 71.1 | 264.6 | 72.6 | 315.6 | 73.5 | 372.6 | 74.7 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 168.0 | 79.2 | 205.2 | 79.3 | 248.7 | 79.8 | 298.5 | 81.0 | 354.6 | 82.8 | |||||||||
| 45 | 154.5 | 81.9 | 189.9 | 83.1 | 232.2 | 85.5 | 281.1 | 87.6 | 366.3 | 89.7 | |||||||||
| LXPL-BRFCF4 -140H |
4 | 35 | 240.0 | 93.6 | 292.4 | 94.8 | 352.8 | 96.8 | 420.8 | 98.0 | 496.8 | 99.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 224.0 | 105.6 | 373.6 | 106.0 | 331.6 | 106.4 | 398.0 | 108.0 | 472.8 | 110.4 | |||||||||
| 45 | 206.0 | 109.0 | 253.2 | 111.6 | 309.6 | 114.0 | 374.8 | 116.8 | 448.4 | 119.6 | |||||||||
| LXPL-RFCF-50H | SLG140 -50 (50HP) |
1 | 35 | 69.9 | 27.3 | 85.1 | 27.5 | 1026 | 28.1 | 122.5 | 28.5 | 144.5 | 28.9 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 1800×1400×1500 |
| 40 | 65.1 | 30.7 | 79.6 | 30.8 | 96.5 | 31.0 | 115.8 | 31.4 | 137.6 | 32.1 | |||||||||
| 45 | 60.0 | 31.8 | 73.7 | 32.5 | 90.1 | 33.2 | 109.1 | 33.9 | 130.5 | 34.8 | |||||||||
| LXPL-BRFCF2 -100H |
2 | 35 | 139.8 | 54.6 | 170.2 | 55.0 | 205.2 | 56.2 | 245.0 | 57.0 | 289.0 | 57.8 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 130.2 | 61.4 | 159.2 | 61.6 | 193.0 | 62.0 | 231.6 | 62.8 | 275.2 | 64.2 | |||||||||
| 45 | 120.0 | 63.6 | 147.4 | 65.0 | 180.2 | 66.4 | 218.2 | 67.8 | 261.0 | 69.6 | |||||||||
| LXPL-BRFCF3 -150H |
3 | 35 | 209.7 | 81.9 | 255.3 | 82.5 | 307.8 | 84.3 | 367.5 | 85.5 | 433.5 | 86.7 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 1953 | 92.1 | 238.8 | 92.4 | 289.5 | 93.0 | 347.4 | 94.2 | 412.8 | 96.3 | |||||||||
| 45 | 180.0 | 95.4 | 221.1 | 97.5 | 270.3 | 99.6 | 327.3 | 101.7 | 391.5 | 104.4 | |||||||||
| LXPL-BRFCF4 -200H |
4 | 35 | 279.6 | 109.2 | 340.4 | 110.0 | 410.4 | 112.4 | 490.0 | 114.0 | 578.0 | 1156 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 260.4 | 1228 | 318.4 | 123.2 | 386.0 | 124.0 | 463.2 | 125.6 | 550.4 | 128.4 | |||||||||
| 45 | 240.0 | 127.2 | 294.8 | 130.0 | 360.4 | 1328 | 436.4 | 1356 | 522.0 | 139.2 | |||||||||
| LXPL-RFCF-60H | SLG160 -60 (60HP) |
1 | 35 | 77.1 | 30.1 | 93.9 | 30.4 | 113.2 | 31.0 | 135.2 | 35.1 | 159.5 | 31.9 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×2000×1700 |
| 40 | 71.9 | 33.8 | 87.8 | 34.0 | 106.5 | 34.2 | 127.8 | 34.6 | 151.9 | 35.4 | |||||||||
| 45 | 662 | 35.0 | 81.4 | 358 | 99.4 | 36.7 | 120.3 | 37.5 | 144.0 | 38.4 | |||||||||
| LXPL-BRFCF2 -120H |
2 | 35 | 154.2 | 602 | 187.8 | 60.8 | 226.4 | 620 | 270.4 | 63.0 | 319.0 | 638 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 143.8 | 67.6 | 175.6 | 68.0 | 2130 | 68.4 | 255.6 | 692 | 3038 | 70.8 | |||||||||
| 45 | 132.4 | 70.0 | 162.8 | 71.6 | 198.8 | 73.4 | 240.6 | 75.0 | 288.0 | 76.8 | |||||||||
| LXPL-BRFCF3 -180H |
3 | 35 | 231.3 | 90.3 | 281.7 | 91.2 | 3396 | 930 | 4056 | 94.5 | 478.5 | 95.7 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 215.7 | 101.4 | 263.4 | 102.0 | 319.5 | 102.6 | 383.4 | 103.8 | 455.1 | 106.2 | |||||||||
| 45 | 198.6 | 105.0 | 244.2 | 107.4 | 298.2 | 110.1 | 360.9 | 112.5 | 4320 | 115.2 | |||||||||
| LXPL-BRFCF4 -240H |
4 | 35 | 308.4 | 120.4 | 375.6 | 121.6 | 452.8 | 124.0 | 540.8 | 126.0 | 638.0 | 127.6 | 350 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 287.6 | 135.2 | 351.2 | 136.0 | 426.0 | 136.8 | 511.2 | 138.4 | 607.6 | 141.6 | |||||||||
| 45 | 264.8 | 140.0 | 325.6 | 143.2 | 397.6 | 146.8 | 481.2 | 150.0 | 576.0 | 153.6 | |||||||||
| Unit Model | Com.Model (RFC) |
Com. Cuartity |
Condensing temp. (℃) |
Evaporation Temp. (℃) | Reservair (L) |
Supply pipe (mm) |
Suction pipe (mm) |
Gas Outiet pipe (mm) |
liquid inletpipe (mm) |
Dimensian(mm) (L×W×H) |
|||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Ccoling Capacity/Power Input(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG190 -65 (65HP) |
1 | 35 | 97.4 | 37.6 | 118.1 | 38.0 | 143.1 | 38.8 | 170.8 | 39.4 | 201.5 | 39.9 | 150 | Φ35 | Φ76 | Φ45 | Φ45 | 2200×1500×1700 |
| 40 | 90.8 | 42.3 | 111.0 | 42.5 | 134.6 | 42.7 | 161.5 | 43.3 | 191.9 | 44.3 | |||||||||
| 45 | 83.6 | 43.8 | 102.8 | 44.8 | 125.6 | 45.8 | 152.1 | 46.9 | 182.0 | 48.0 | |||||||||
| LXPL-BRFCF2 -130H |
2 | 35 | 194.8 | 75.2 | 237.4 | 76.0 | 286.2 | 77.6 | 341.6 | 78.8 | 403.0 | 79.8 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 181.6 | 84.6 | 222.0 | 85.0 | 269.6 | 85.4 | 323.0 | 86.6 | 383.8 | 88.6 | |||||||||
| 45 | 167.2 | 87.6 | 205.6 | 896 | 251.2 | 91.6 | 304.2 | 93.8 | 364.0 | 96.0 | |||||||||
| LXPL-BRFCF3 -195H |
3 | 35 | 292.2 | 112.8 | 356.1 | 114.0 | 429.3 | 116.4 | 512.4 | 118.2 | 604.5 | 119.7 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 272.4 | 126.9 | 333.0 | 127.5 | 403.8 | 128.1 | 484.5 | 129.9 | 575.7 | 132.9 | |||||||||
| 45 | 250.8 | 131.4 | 308.4 | 134.4 | 376.8 | 137.4 | 456.3 | 140.7 | 546.0 | 144.0 | |||||||||
| LXPL-BRFCF4 -260H |
4 | 35 | 389.6 | 150.4 | 474.8 | 152.0 | 572.4 | 1552 | 6832 | 157.6 | 806.0 | 159.6 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 363.2 | 169.2 | 444.0 | 170.0 | 538.4 | 170.8 | 646.0 | 173.2 | 767.6 | 177.2 | |||||||||
| 45 | 334.4 | 175.2 | 411.2 | 179.2 | 502.4 | 183.2 | 608.4 | 187.6 | 728.0 | 192.0 | |||||||||
| LXPL-RFCF-70H | SLG210 -70 (70HP) |
1 | 35 | 103.4 | 40.3 | 125.9 | 40.7 | 151.8 | 41.6 | 181.2 | 422 | 213. | 42.8 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 96.3 | 45.5 | 117.7 | 45.6 | 142.8 | 45.8 | 171.3 | 46.4 | 203.5 | 47.5 | |||||||||
| 45 | 88.7 | 47.0 | 109.0 | 48.0 | 133.2 | 49.1 | 161.3 | 50.2 | 193.0 | 51.5 | |||||||||
| LXPL-BRFCF2 -140H |
2 | 35 | 206.8 | 80.6 | 251.8 | 81.4 | 303.6 | 83.2 | 362.4 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 192.6 | 90.8 | 235.4 | 91.2 | 285.6 | 91.6 | 342.6 | 92.8 | 407.0 | 95.0 | |||||||||
| 45 | 177.4 | 94.0 | 218.0 | 96.0 | 266.4 | 98.2 | 322.6 | 100.4 | 386.0 | 103.0 | |||||||||
| LXPL-BRFCF3 -210H |
3 | 35 | 310.2 | 120.9 | 377.7 | 122.1 | 455.4 | 124.8 | 543.6 | 126.6 | 641.1 | 128.4 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 288.9 | 136.2 | 353.1 | 136.8 | 428.4 | 137.4 | 713.9 | 139.2 | 610.5 | 142.5 | |||||||||
| 45 | 266.1 | 141.0 | 327.0 | 144.0 | 399.6 | 147.3 | 483.9 | 150.6 | 579.0 | 154.5 | |||||||||
| LXPL-BRFCF4 -280H |
4 | 35 | 413.6 | 161.2 | 503.6 | 162.8 | 607.2 | 166.4 | 724.8 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 385.2 | 181.6 | 470.8 | 182.4 | 571.2 | 83.2 | 685.2 | 185.6 | 814.0 | 190.0 | |||||||||
| 45 | 354.8 | 188.0 | 436.0 | 192.0 | 532.8 | 196.4 | 645.2 | 200.8 | 772.0 | 206.0 | |||||||||
| LXPL-RFCF-80H | SLG230 -80 (80HP) |
1 | 35 | 115.7 | 45.1 | 140.9 | 45.6 | 1698 | 46.5 | 202.7 | 47.2 | 239.2 | 47.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 107.8 | 50.8 | 131.7 | 51.0 | 1598 | 51.2 | 191.7 | 51.9 | 2278 | 53.1 | |||||||||
| 45 | 99.2 | 52.5 | 122.0 | 53.8 | 149. | 55.0 | 180.5 | 562 | 216.0 | 57.6 | |||||||||
| LXPL-BRFCF2 -160H |
2 | 35 | 231.4 | 90.2 | 281.8 | 91.2 | 339.6 | 93.0 | 405.4 | 94.4 | 478.4 | 958 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 215.6 | 1016 | 263.4 | 102.0 | 319.6 | 102.4 | 383.4 | 103.8 | 455.6 | 106.2 | |||||||||
| 45 | 198.4 | 105.0 | 244.0 | 107.6 | 298.2 | 110.0 | 361.0 | 112.4 | 432.0 | 115.2 | |||||||||
| LXPL-BRFCF3 -240H |
3 | 35 | 347.1 | 135.3 | 422.7 | 136.8! | 509.4 | 139.54 | 608.1 | 141.6 | 717.6 | 143.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 323.4 | 152.4 | 395.1 | 153.0 | 479.4 | 153.6 | 575.1 | 155.7 | 683.4 | 159.3 | |||||||||
| 45 | 297.6 | 157.5 | 366.0 | 161.4 | 447.3 | 1650 | 541.5 | 168.6 | 648.0 | 172.8 | |||||||||
| LXPL-BRFCF4 -320H |
4 | 35 | 462.8 | 180.4 | 536.6 | 182.4 | 679.2 | 186.0 | 810.8 | 188.8 | 956.8 | 191.6 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1800 | |
| 40 | 431.2 | 203.2 | 5268 | 204.0 | 639.2 | 204.8 | 7668 | 207.6 | 911.2 | 212.4 | |||||||||
| 45 | 396.8 | 210.0 | 488.0 | 215.2 | 596.4 | 220.0 | 722.0 | 224.8 | 864.0 | 230.4 | |||||||||
| Unit Model | Com.Model (RFC) |
Com, Cuartity |
Condensing temp. (℃） |
Evaporation Temp. (℃) | Reservoir (L) |
Supply pipe (mm) |
Suction pipe (mm) |
Gas Outiet (mm) |
liquid inletpipe (mm) |
Dimension(mm) (LxW×H) |
|||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Cooling Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-90H | SLG250 -90 (90HP) |
1 | 35 | 123.0 | 48.0 | 149.9 | 48.5 | 180.7 | 49.5 | 215.1 | 50.3 | 2554 | 51.0 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 114.7 | 54.0 | 140.1 | 54.3 | 170.0 | 54.5 | 203.9 | 55.3 | 2423 | 56.5 | |||||||||
| 45 | 105.5 | 55.9 | 129.8 | 57.2 | 158.6 | 58.5 | 192.0 | 59.8 | 229.8 | 61.3 | |||||||||
| LXPL-BRFCF2 -180H |
2 | 35 | 246.0 | 96.0 | 299.8 | 97.0 | 361.4 | 99.0 | 431.4 | 100.6 | 508.8 | 102.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 229.4 | 108.0 | 280.2 | 108.6 | 340.0 | 109.0 | 407.8 | 110.6 | 484.6 | 113.0 | |||||||||
| 45 | 211.0 | 111.8 | 258.0 | 114.4 | 317.2 | 117.0 | 384.0 | 119.6 | 4596 | 122.6 | |||||||||
| LXPL-BRFCF3 -270H |
3 | 35 | 369.0 | 144.0 | 449.7 | 145.5 | 542.1 | 148.5 | 647.1 | 150.9 | 7632 | 153.0 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 344.1 | 162.0 | 420.3 | 162.9 | 510.0 | 163.5 | 611.7 | 165.9 | 726.9 | 169.5 | |||||||||
| 45 | 316.5 | 167.6 | 389.4 | 171.6 | 475.8 | 175.5 | 576.0 | 179.4 | 689.4 | 183.9 | |||||||||
| LXPL-BRFCF4 -360H |
4 | 35 | 492.0 | 1920 | 599.6 | 194.0 | 722.8 | 198.0 | 862.8 | 201.2 | 1017.6 | 204.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1900 | |
| 40 | 458.8 | 216.0 | 560.4 | 217.2 | 680.0 | 218.0 | 815.6 | 221.2 | 9692 | 226.0 | |||||||||
| 45 | 422.0 | 2236 | 519.2 | 228.8 | 634.4 | 234.0 | 768.0 | 2392 | 919.2 | 245.2 | |||||||||
| LXPL-RFCF -100H |
SLG290 -100 (100HP) |
1 | 35 | 145.2 | 56.6 | 176.9 | 57.2 | 213.2 | 58.4 | 254.5 | 59.3 | 300.2 | 60.1 | 200 | Φ36 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 135.3 | 63.7 | 165.4 | 64.0 | 200.5 | 64.3 | 240.7 | 65.2 | 285.9 | 66.7 | |||||||||
| 45 | 124.5 | 66.0 | 153.2 | 67.5 | 187.2 | 69.0 | 226.6 | 70.5 | 271.1 | 72.3 | |||||||||
| LXPL-BRFCF2 -200H |
2 | 35 | 290.4 | 113.2 | 353.8 | 114.4 | 426.4 | 116.8 | 5090 | 118.6 | 600.4 | 120.2 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 270.6 | 127.4 | 330.8 | 128.0 | 401.0 | 128.6 | 481.4 | 130.4 | 571.8 | 133.4 | |||||||||
| 45 | 249.0 | 132.0 | 306.4 | 135.0 | 374.4 | 138.0 | 453.2 | 141.0 | 542.2 | 144.6 | |||||||||
| LXPL-BRFCF3 -300H |
3 | 35 | 435.6 | 1698 | 530.7 | 171.6 | 639.6 | 175.2 | 763.5 | 177.9 | 900.6 | 180.3 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 405.9 | 191.1 | 496.2 | 192.0 | 601.5 | 192.9 | 722.1 | 195.6 | 857.7 | 200.1 | |||||||||
| 45 | 373.5 | 198.0 | 459.6 | 202.5 | 561.6 | 207.0 | 679.8 | 211.5 | 813.3 | 216.9 | |||||||||
| LXPL-BRFCF4 -400H |
4 | 35 | 580.8 | 226.4 | 707.6 | 228.8 | 852.8 | 233.6 | 1018.0 | 237.2 | 1200.8 | 240.4 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 541.2 | 254.8 | 661.6 | 256.0 | 802.0 | 257.2 | 962.8 | 260.8 | 1143.6 | 266.8 | |||||||||
| 45 | 501.6 | 264.0 | 6128 | 270.0 | 748.8 | 276.0 | 906.4 | 282.0 | 1084.4 | 289.2 | |||||||||
| LXPL-RFCF -120H |
SLG350 -120 (120HP) |
1 | 35 | 177.2 | 69.1 | 2158 | 69.8 | 260.2 | 71.3 | 310.6 | 72.4 | 366.4 | 73.4 | 250 | Φ57 | Φ89 | Φ76 | Φ45 | 2400×1600×1700 |
| 40 | 165.3 | 77.8 | 201.8 | 78.1 | 244.7 | 78.5 | 293.7 | 79.6 | 348.9 | 81.4 | |||||||||
| 45 | 152.0 | 80.5 | 186.9 | 82.4 | 228.4 | 84.2 | 276.5 | 86.1 | 330.9 | 88.2 | |||||||||
| LXPL-BRFCF2 -240H |
2 | 35 | 354.4 | 138.2 | 431.6 | 139.6 | 520.4 | 1426 | 621.2 | 144.8 | 732.8 | 146.8 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2400×2000×1800 | |
| 40 | 330.4 | 1556 | 403.6 | 156.2 | 489.4 | 157.0 | 587.4 | 1592 | 697.8 | 162.8 | |||||||||
| 45 | 304.0 | 161.0 | 3738 | 164.8 | 456.8 | 168.4 | 553.0 | 172.2 | 661.8 | 176.4 | |||||||||
| LXPL-BRFCF3 -360H |
3 | 35 | 531.6 | 207.3 | 647.4 | 209.4 | 780.6 | 2139 | 931.8 | 217.2 | 1099.2 | 220.2 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 495.6 | 2334 | 632.4 | 234.3 | 734.1 | 235.5 | 881.1 | 2338 | 1046.7 | 244.2 | |||||||||
| 45 | 456.0 | 241.5 | 560.1 | 247.2 | 6852 | 2526 | 829.5 | 258.3 | 992.7 | 264.6 | |||||||||
| LXPL-BRFCF 4 -480H |
4 | 35 | 7088 | 376.4 | 863.2 | 279.2 | 1040.8 | 285.2 | 242.4 | 289.6 | 1465.6 | 293.6 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 660.8 | 311.2 | 807.2 | 312.4 | 978.8 | 314.0 | 1174.8 | 318.4 | 1395.6 | 3256 | |||||||||
| 45 | 608.0 | 322.0 | 747.6 | 329.6 | 913.6 | 3368 | 1106.0 | 344.4 | 323.6 | 3528 | |||||||||
| Unit Model | Com.Model (RFC) |
Com. Cuartity |
Condensing temp. (℃) |
Evaporation Temp. (℃) | Reservoir (L) |
Supply pipe (mm) |
Suction pipe (mm) |
Gas Outiet pipe (mm) |
liquid inletpipe (mm) |
Dimension(mm) (L×W×H) |
||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Cooling Capacity/Power lnput(kw) | ||||||||||||||||||||
| LXPL-RFCF -140H |
SLG420 -140 (140HP) |
1 | 35 | 206.7 | 80.6 | 251.8 | 81.5 | 303.6 | 83.2 | 362.3 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 | |
| 40 | 192.7 | 90.7 | 235.4 | 91.1 | 285.5 | 91.6 | 342.6 | 92.8 | 407.1 | 94.9 | ||||||||||
| 45 | 177.3 | 93.9 | 218.1 | 96.1 | 266.5 | 98.2 | 322.6 | 100.4 | 386.0 | 102.9 | ||||||||||
| LXPL-BRFCF2 -280H |
2 | 35 | 413.4 | 161.2 | 503.6 | 163.0 | 607.2 | 166.4 | 724.6 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | ||
| 40 | 385.4 | 181.4 | 470.8 | 182.2 | 571.0 | 183.2 | 6852 | 185.6 | 814.2 | 1898 | ||||||||||
| 45 | 354.6 | 187.8 | 436.2 | 192.2 | 533.0 | 1964 | 645.2 | 200.8 | 772.0 | 2058 | ||||||||||
| LXPL-BRFCF3 -420H |
3 | 35 | 620.1 | 241.8 | 755.4 | 244.5 | 910.8 | 249.6 | 1086.9 | 253.2 | 1417.2 | 256.8 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | ||
| 40 | 578.1 | 272.1 | 706.2 | 273.3 | 856.5 | 274.8 | 1027.8 | 378.4 | 1221.3 | 284.7 | ||||||||||
| 45 | 531.9 | 281.7 | 654.3 | 288.3 | 799.5 | 294.6 | 967.8 | 301.2 | 1158.0 | 308.7 | ||||||||||
| LXPL-BRFCF4 -560H |
4 | 35 | 8268 | 322.4 | 1007.2 | 326.0 | 1214.4 | 332.8 | 1449.2 | 337.6h | 709.66 | 342.4 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | ||
| 40 | 770.8 | 3268 | 941.6 | 364.4 | 142.0 | 366.4 | 1370.4 | 371.2 | 628.4 | 3796 | ||||||||||
| 45 | 7092 | 375.6 | 8724 | 384.4 | 1066.0 | 392.8 | 1290.4 | 401.6 | 1544.0 | 411.6 | ||||||||||
| LXPL-RFCF -180H |
SLG520 -180 (180HP) |
1 | 35 | 255.9 | 99.8 | 311.7 | 100.9 | 375.8 | 103.0 | 448.6 | 104.5 | 529.2 | 106.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 | |
| 40 | 238.6 | 112.3 | 291.5 | 112.8 | 353.5 | 113.4 | 424.2 | 114.9 | 504.0 | 117.5 | ||||||||||
| 45 | 219.5 | 116.3 | 270.0 | 119.0 | 3299 | 121.6 | 3994 | 124.3 | 477.9 | 127.5 | ||||||||||
| LXPL-BRFCF2 -360H |
2 | 35 | 511.8 | 199.6 | 6234 | 201.8 | 751.6 | 206.0 | 897.2 | 209.0 | 1058.4 | 212.0 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | ||
| 40 | 477.2 | 224.6 | 583.0 | 225.6 | 707.0 | 226.8 | 848.4 | 229.8 | 100.8 | 235.0 | ||||||||||
| 45 | 439.0 | 232.6 | 540.0 | 238.0 | 659.8 | 243.2 | 798.8 | 248.6 | 955.8 | 255.0 | ||||||||||
| LXPL-BRFCF3 -540H |
3 | 35 | 767.7 | 299.4 | 935.1 | 302.7 | 127.4 | 309.0 | 1345.8 | 313.5 | 1587.6 | 318.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 7158 | 336.9 | 874.5 | 338.4 | 1060.5 | 340.2 | 272.6 | 344.1 | 1512.0 | 352.5 | ||||||||||
| 45 | 658.5 | 348.9 | 810.0 | 357.0 | 989.7 | 364.8 | 1198.2 | 372.9 | 1433.7 | 382.5 | ||||||||||
| LXPL-BRFCF4 -720H |
4 | 35 | 1023.6 | 399.2 | 1246.8 | 403.6 | 1503.2 | 412.0 | 1794.4 | 418.0 | 2116.8 | 424.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 954.4 | 449.2 | 1166.0 | 451.2 | 1414.0 | 453.6 | 1696.8 | 459.6 | 2016.0 | 470.0 | ||||||||||
| 45 | 878.0 | 465.2 | 1080.0 | 476.0 | 1319.6 | 486.4 | 1597.6 | 497.2 | 1911.6 | 510.0 | ||||||||||
| LXPL-RFCF -210H |
SLG640 -210 (210HP) |
1 | 35 | 314.4 | 122.6 | 383.0 | 123.9 | 461.7 | 126.5 | 551.1 | 128.4 | 650. | 130.2 | 350 | Φ57 | Φ108 | Φ89 | Φ76 | 2400×1700×1800 | |
| 40 | 293.1 | 138.0 | 358.1 | 138.6 | 434.3 | 1393 | 521.1 | 141.2 | 619.1 | 144.4 | ||||||||||
| 45 | 269.7 | 142.8 | 331.7 | 146.1 | 405.3 | 149.4 | 490.6 | 152.7 | 587.1 | 156.6 | ||||||||||
| LXPL-BRFCF2 -420H |
2 | 35 | 628.8 | 245.2 | 766.0 | 2478 | 9234 | 253.0 | 1102.2 | 256.8 | 1300.2 | 260.4 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | ||
| 40 | 586.24 | 276.0 | 7162 | 277.2 | 868.6 | 278.6 | 4042.2 | 282.4 | 12382 | 2888 | ||||||||||
| 45 | 539.4 | 2856 | 6334 | 292.2 | 810.6 | 298.8 | 981.2 | 305.4 | 1174.2 | 313.2 | ||||||||||
| LXPL-BRFCF3 630H |
3 | 35 | 943.2 | 367.8 | 1149.0 | 371.7 | 1385.1 | 379.59 | 653.3 | 385.2 | 1950.3 | 390.6 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 879.3 | 414.0 | 1074.3 | |4158 | 1302.9 | 417.9 | 1563.3 | 423.6 | 1857.3 | 4332 | ||||||||||
| 45 | 809.1 | 428.4 | 995.1 | 438.3 | 1215.9 | 4482 | 1471.8 | 458.1 | 1761.3 | 4698 | ||||||||||
| LXPL-BRFCF4 -840H |
4 | 35 | 1257.6 | 490.4 | 1532.0 | |495.6 | 1846.8 | 506.0 | 2204.4 | 513.6 | 2600.4 | 520.8 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 1172.4! | 552.0 | 1432.4 | 554.4 | 1737.2 | 557.2 | 2084.4 | 564.8 | 2746.4! | 577.6 | ||||||||||
| 45 | 1078.8 | 571.2 | 1326.8 | 584.4 | 1621.2 | 597.6 | 1962.4 | 610.8 | 2348.4 | 626.4 | ||||||||||
Detail Display
Contact Us
ABOUT US
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
As China RFC High Temperature Screw Unit Suppliers and RFC High Temperature Screw Unit Factory,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. specializes in efficient, green, and sustainable refrigeration solutions. Leveraging high-quality products and innovative technologies, we serve the food, pharmaceutical, chemical, and cold chain logistics sectors, creating energy-efficient and environmentally friendly systems for our customers and fostering mutually beneficial development for both industry and the environment.
Certificate of Honor
News
-
A cold room holds -18 °C perfectly for two weeks, then the coil ices over and the unit trips on high discharge pressure in the middle of a July delivery week. The compressor is usually not the problem. In most of the troublesome installati...
READ MORE -
Industrial air coolers do the actual cooling work inside a cold room. It is the air cooler — the evaporator with fans and finned coil — that pulls warm air out of the space and sends cooled air back in. Get this component wrong and the who...
READ MORE -
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. announces its participation in Coldchain Qazaqstan, taking place from October 28 to 30, 2026 at Atakent-Expo, Almaty, Kazakhstan. Visitors are warmly invited to meet our team at Booth 10-031....
READ MORE
CONTACT US
QUICK LINKS
PRODUCTS
CONTACT INFORMATION
- Email: [email protected]
- Phone: +86-15258555916
- Add: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Copyright © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. All Rights Reserved.
浙ICP备2022034605号-1
Wholesale RFC High Temperature Screw Unit Factory
